Description

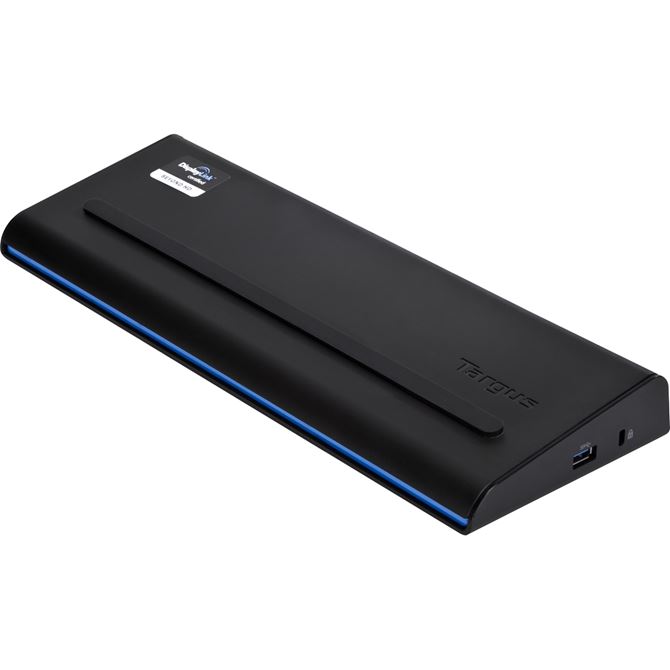

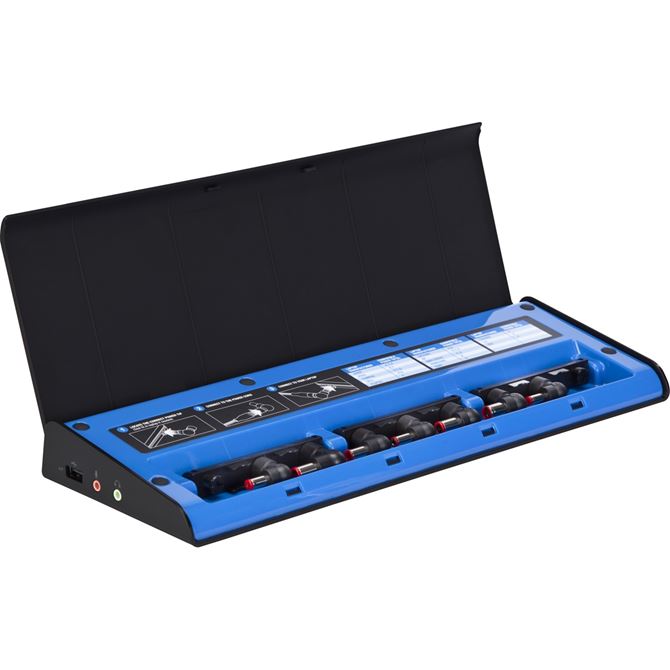

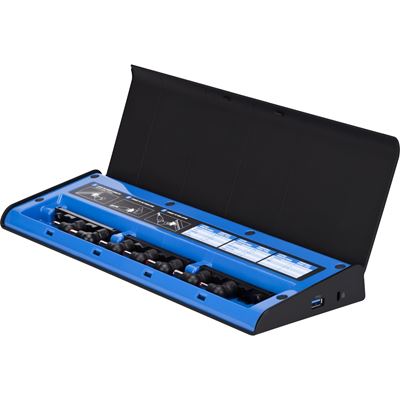

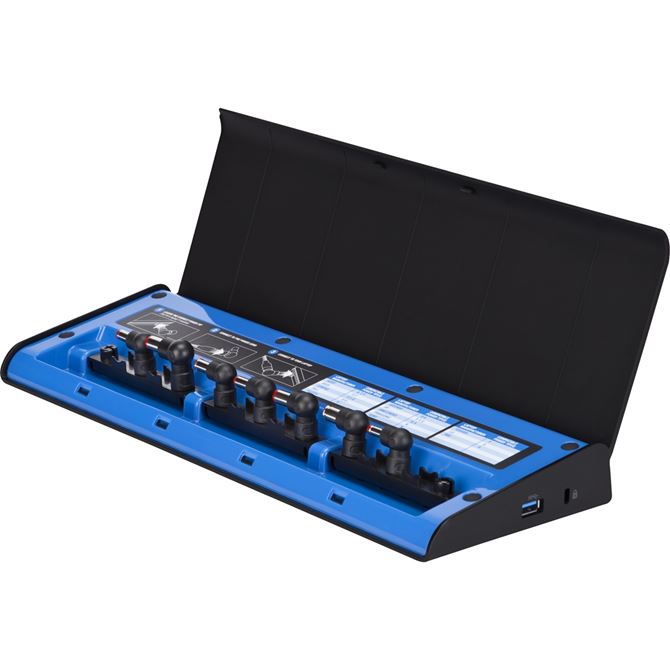

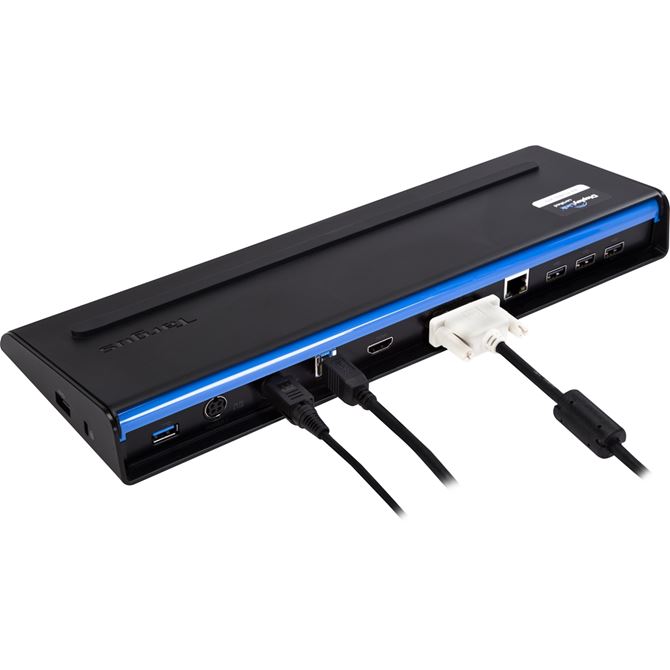

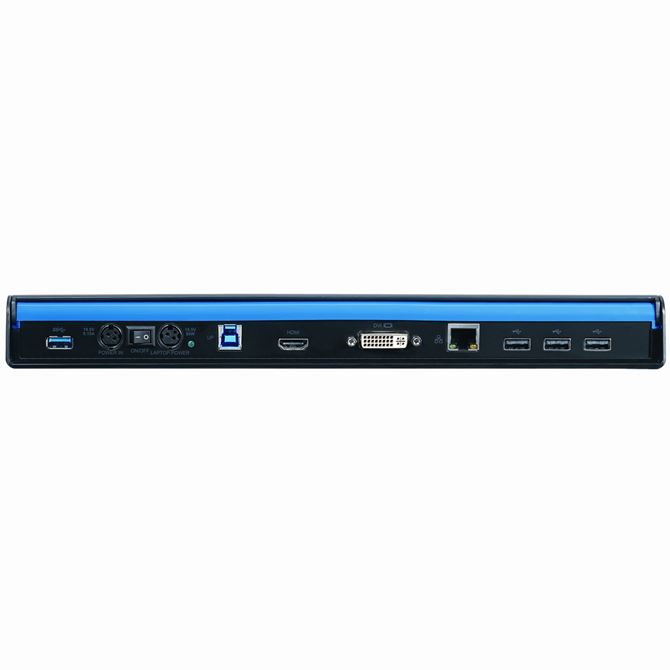

A fast and simple “One Touch” USB connection from laptop to work space peripherals at USB 3.0 Superspeed. Delivering superb picture quality for up to two external screens without any picture distortion or delay at a resolution up to 2048 x 1152. 6 USB ports - 2x USB 3.0 and 4x USB 2.0 - two powered USB 2.0 ports are always on even when the laptop is disconnected. The unique built-in power charger supports most 90W laptops and multiple power tips conveniently store inside the dock. The Dual Video Dock also includes a Gigabit Ethernet port, Audio In/Out ports to connect speakers and a security lock slot to secure the dock. Perfect for hot desk environments and suitable for Gigabit Ethernet networks.

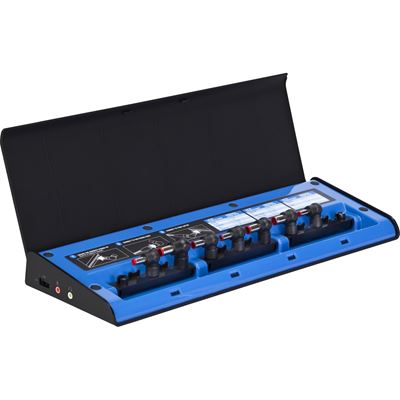

Power Tips Included*
- 3A
- 3I2
- 3H - Dell (New)
- 3H2 - HP (New)
- 3P
- 3W
- 3X9 - Lenovo (New)
*this list reflects the latest specification. Product specifications (such as the included Power Tips) are subject to change without notification. Other Power Tip types are available through Customer Services.
Features
|
|
Universal USB 3.0 Superspeed connection - 2ft / 60cm cable
|
|
|

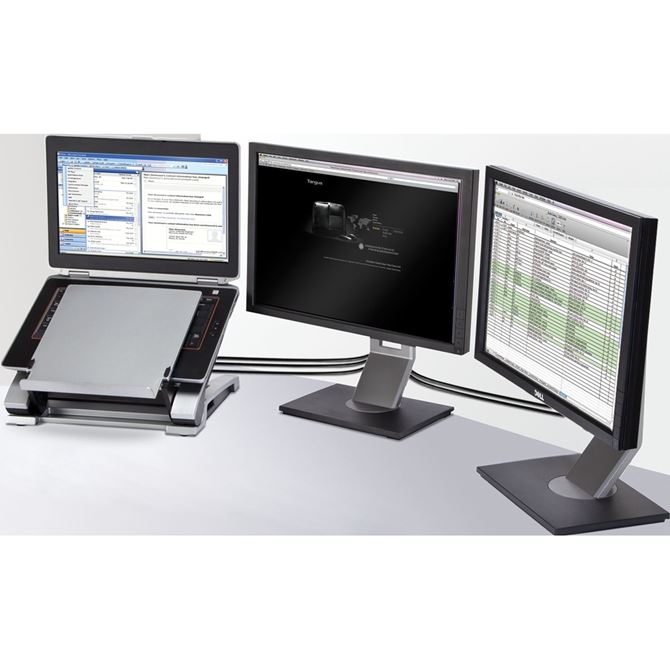

Supports up to 2 external screens up to 2048 x 1152 resolution
|
|
|

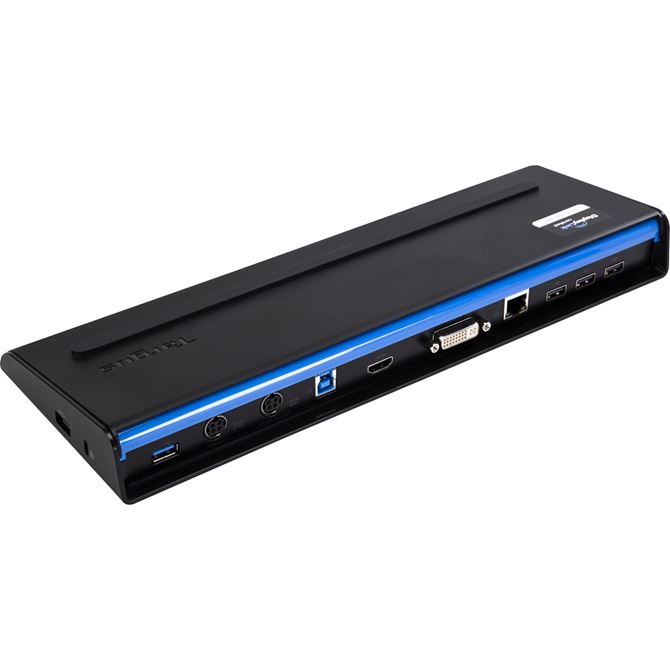

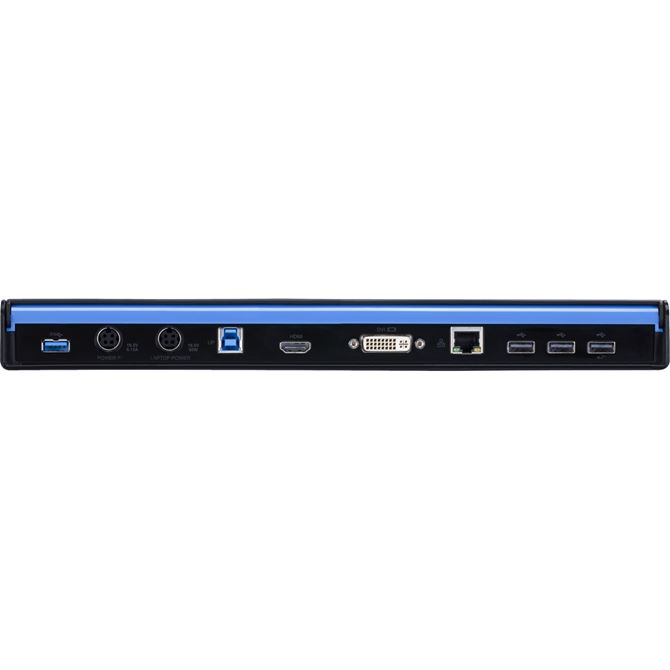

Dual video ports (DVI-I & HDMI)
|
|
|
Built in power 90W @ 19.5V charging, 8 power tips included
|
|
|
6 x USB Ports - 2 x USB 3.0, 2 x Powered USB 2.0 & 2 USB 2.0 ports
|
|
|

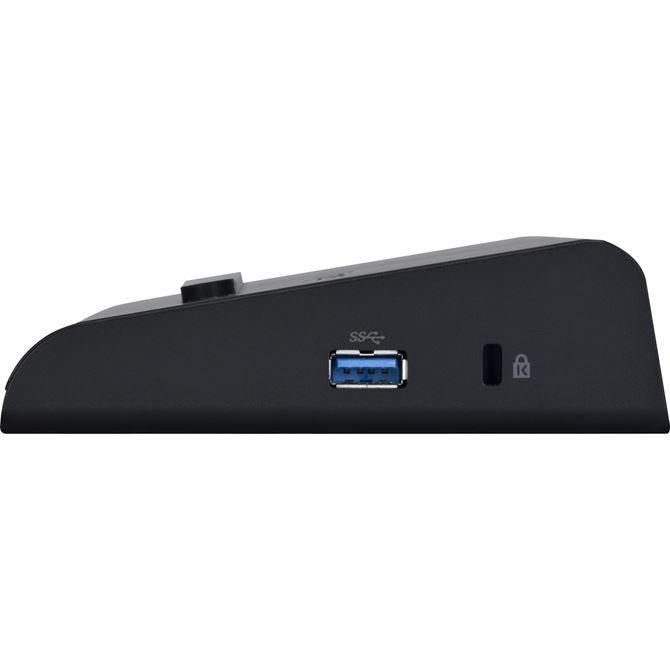

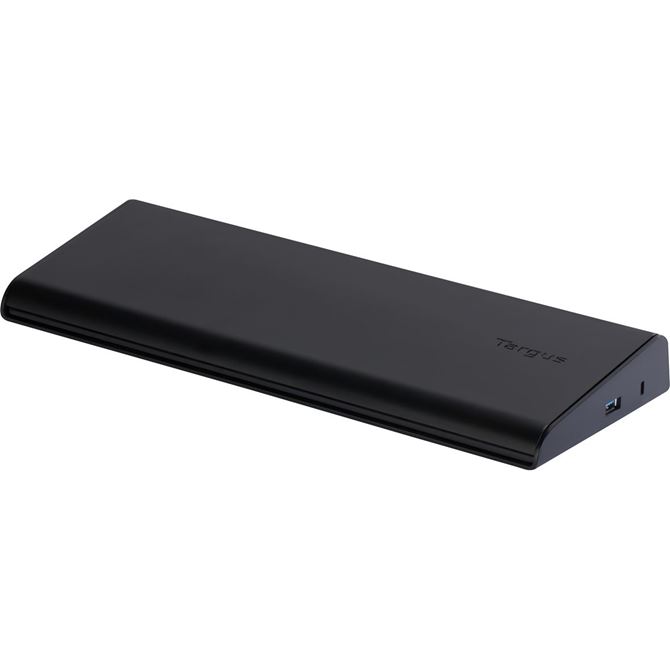

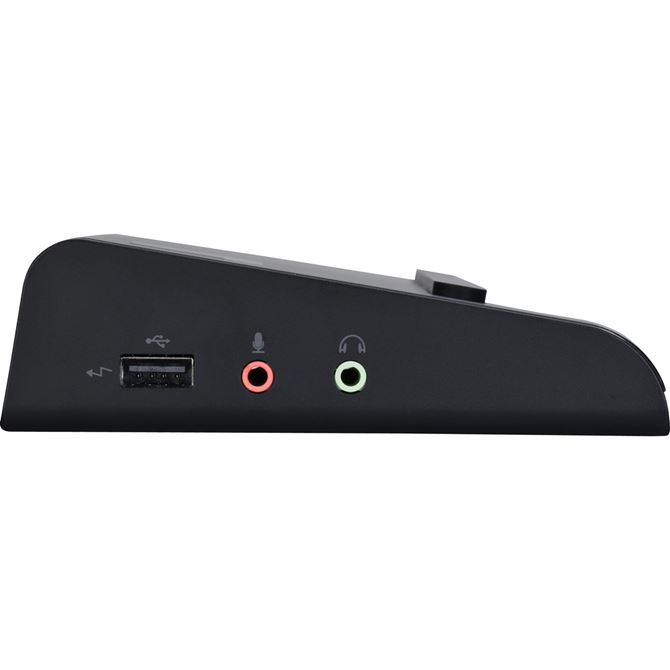

Audio In/Out; Security Lock Slot; Horizontal wedge design
|
|
|
Gigabit Ethernet port
|
|
|
6.15A AC adapter
|
|
|
3 Year Warranty
|
Warranty
Limited 3-Year Warranty
System Requirments
Windows® 10, Windows® 8.1, Windows® 8, Windows® 7 / Mac OS® X v10.8, v10.9, v10.10 / Android v5 or later USB Port (USB 3.0 recommended)
Exterior Dimensions
33 x 4 x 12cm
EAN Barcode
5051794008418
Drivers
|
Software
|
USB Graphics Software for Mac OS X and macOS 10.11 to 10.13 (v.4.1) – December 2017 |
|
Software
|
Video, Audio, and Ethernet EXE Software for Windows 7, 8.1, and 10 (v.8.4M0) – December 2017 |
|
Software
|
Video, Audio, and Ethernet Corporate Installation and Deployment MSI Software for Windows 7, 8.1, and 10 (v.8.4M0) – December 2017 |
|
Software
|
Video, Audio, and Ethernet Corporate Installation and Deployment INF Software for Windows 7, 8.1, and 10 (v.8.4M0) – December 2017 |
|
Tool
|
Windows Support Tool (v.1.0.0.28) - October 2017 |
|
Tool
|
OS X Support Tool |
|
Software
|
Targus MAC Address Clone Utility for Windows (v.1.01.020) – December 2017 |
|
Software
|
Targus Display Configuration Utility for Windows (v.2.01.033) – June 2017 |
|
Software
|
USB Graphics Software for Ubuntu 16.04 LTS & 17.10.1 (v.4.1) – December 2017 |
|
Software
|
Android DisplayLink Presenter |
|
Software
|
Android DisplayLink Desktop |
|
Tool
|
Targus WiFi AutoSwitch Software for Windows (v.2.00.010) – December 2017 |
|
Tool
|
Targus Ghost Device Removal Utility for Windows (v.1.0.4) – January 2017 |
